16-pole, 2-row male rectangular connector with straight orientation and screw termination. Features a 22A current rating and 250V voltage rating. Constructed with a copper alloy body and silver-plated copper alloy contacts. Operates within a temperature range of -40°C to 125°C and boasts a UL94 V-0 flammability rating. CSA and cURus approvals confirm compliance.
Voltage Rating250V
Current Rating22A
MountingCable
Quick Jump:
Technical Specifications
Weidmuller 1650770000 technical specifications.
General
Approvals
CSA, cURus
Contact Material
Copper Alloy, Copper
Contact Plating
Silver
Current Rating
22A
Flammability Rating
UL94 V-0
Gender
Male
Height
29mm
Lead Free
Lead Free
Length
73mm
Material
Copper Alloy
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Contacts
16
Number of Poles
16
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Rockstar® HA
Termination
Screw
Voltage Rating
250V
Width
23mm
Compliance
RoHS
Compliant
Datasheet
Weidmuller 1650770000 Datasheet
Download the complete datasheet for Weidmuller 1650770000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

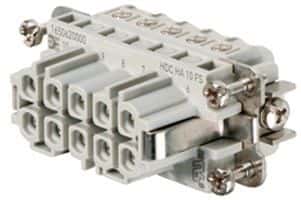

Product Images
