7-position, right-angle, cable-mount terminal block featuring screw termination and a 3.5mm pitch. This general terminal block offers a 10A current rating and 300V voltage rating, with a copper alloy contact material plated in tin. Constructed with UL94 V-0 flammability rated, lead-free, orange housing, it supports wire gauges from 14AWG to 28AWG.
Voltage300V
Current10A
Voltage Rating300V
Current Rating17A
Quick Jump:
Technical Specifications
Weidmuller 1687700000 technical specifications.
General
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 17A |
| Flammability Rating | UL94 V-0 |
| Height | 16.5mm |
| Housing Color | Orange |
| Lead Free | Lead Free |
| Length | 31mm |
| Mount | Free Hanging, Cable |
| Number of Circuits | 7 |
| Number of Contacts | 7 |
| Number of Levels | 1 |
| Number of Poles | 7 |
| Number of Positions | 7 |
| Number of Positions Per Level | 7 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Box |
| Pitch | 0.138inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Omnimate BL |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 18.5mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1687700000 Datasheet
Download the complete datasheet for Weidmuller 1687700000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

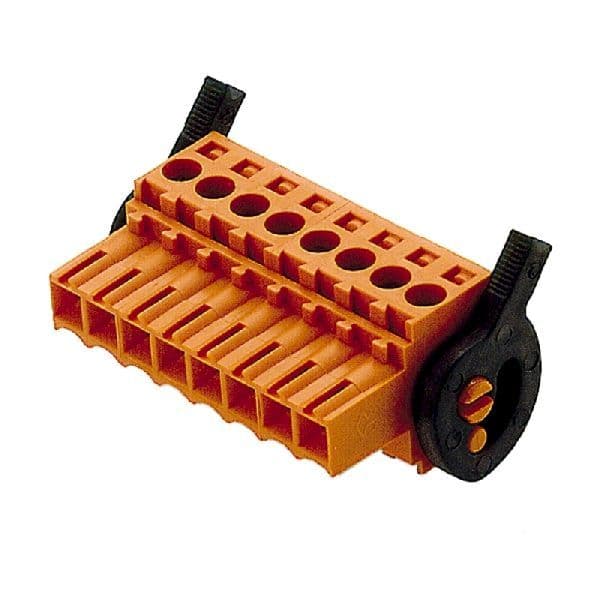

Product Images
