6-position, 1-level terminal block with 3.5mm pitch, straight orientation, and screwless termination. Rated for 10A and 300V, this cable mount connector features a copper alloy contact material and a UL94 V-0 flammability rating. Operating temperature range is -50°C to 100°C, with IP20 protection. Wire gauge compatibility is 14AWG to 26AWG.
Voltage300V
Current10A
Voltage Rating300V
Current Rating14.5A
Quick Jump:
Technical Specifications
Weidmuller 1690230000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Orange |
| Contact Material | Copper Alloy |
| Current | 10A |
| Current Rating | 14.5A |
| Flammability Rating | UL94 V-0 |
| Housing Color | Orange |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -50°C |
| Mount | Free Hanging, Cable |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Poles | 6 |
| Number of Positions | 6 |
| Number of Positions Per Level | 6 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Box |
| Pitch | 3.5mm |
| Radiation Hardening | No |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Omnimate BL |
| Termination | Screwless |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 21.9mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1690230000 Datasheet
Download the complete datasheet for Weidmuller 1690230000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

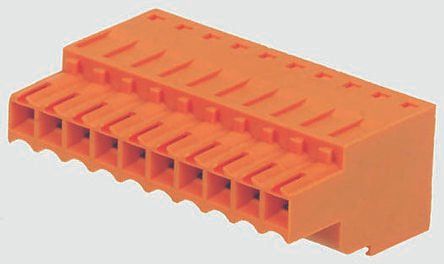

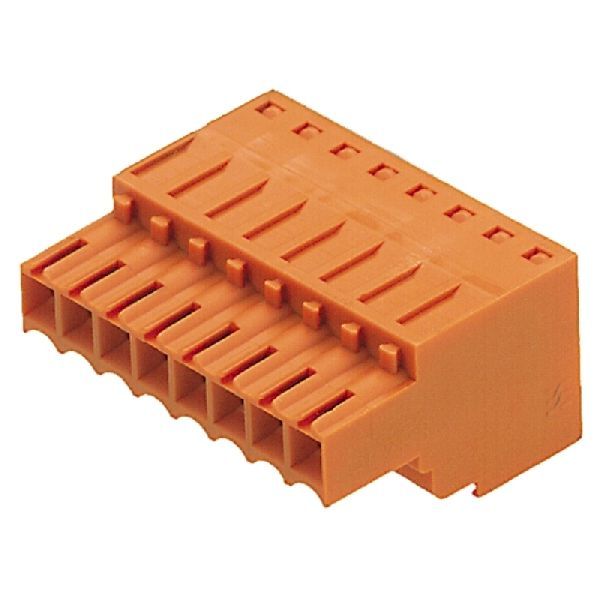

Product Images
