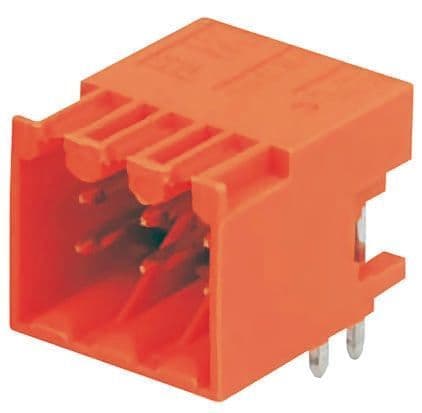

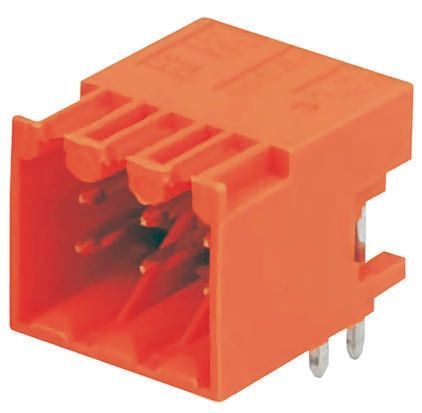

6-position, right-angle, through-hole shrouded header for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Features a 3.5mm pitch, 2-level, 1-row configuration with 3 positions per level. Constructed with copper alloy contacts plated in tin, rated for 10A current and 150V voltage. Operates within a temperature range of -50°C to 100°C, with UL94 V-0 flammability rating and IP10 protection. Lead-free and RoHS compliant.
Voltage150V
Current10A
Voltage Rating150V
Current Rating10A
Quick Jump:
Technical Specifications
Weidmuller 1727830000 technical specifications.
General
Approvals
CSA, UR
Color
Orange
Contact Material
Copper Alloy
Contact Plating
Tin
Current
10A
Current Rating
10A
Depth
14.2mm
Flammability Rating
UL94 V-0
Housing Color
Orange
Lead Free
Lead Free
Length
22.4mm
Max Current Rating
10A
Max Operating Temperature
100°C
Min Operating Temperature
-50°C
Mount
Through Hole
Number of Contacts
6
Number of Levels
2
Number of Poles
6
Number of Positions
6
Number of Positions Per Level
3
Number of Rows
1
Orientation
Right Angle
Packaging
Box
Pitch
0.138inch
Radiation Hardening
No
Ratings
IP10
RoHS Compliant
Yes
Series
Omnimate S2L
Termination
Solder
Voltage
150V
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
Weidmuller 1727830000 Datasheet
Download the complete datasheet for Weidmuller 1727830000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
