24-position, 2-level shrouded header with 3.5mm pitch for board-to-board applications. Features vertical orientation, through-hole mounting, and solder termination. Copper alloy contacts with tin plating offer a 10A current rating and 150V voltage rating. Operates within a -50°C to 100°C temperature range, boasting UL94 V-0 flammability rating and IP10 protection. RoHS compliant and lead-free.
Voltage150V
Current10A
Voltage Rating150V
Current Rating10A
Quick Jump:
Technical Specifications
Weidmuller 1729520000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -50°C |
| Mount | Through Hole |
| Number of Contacts | 24 |
| Number of Levels | 2 |
| Number of Poles | 24 |
| Number of Positions | 24 |
| Number of Positions Per Level | 12 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Packaging | Box |
| Pitch | 3.5mm |
| Radiation Hardening | No |
| Ratings | IP10 |
| RoHS Compliant | Yes |
| Series | Omnimate S2L |
| Termination | Solder |
| Voltage | 150V |
| Voltage Rating | 150V |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1729520000 Datasheet
Download the complete datasheet for Weidmuller 1729520000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

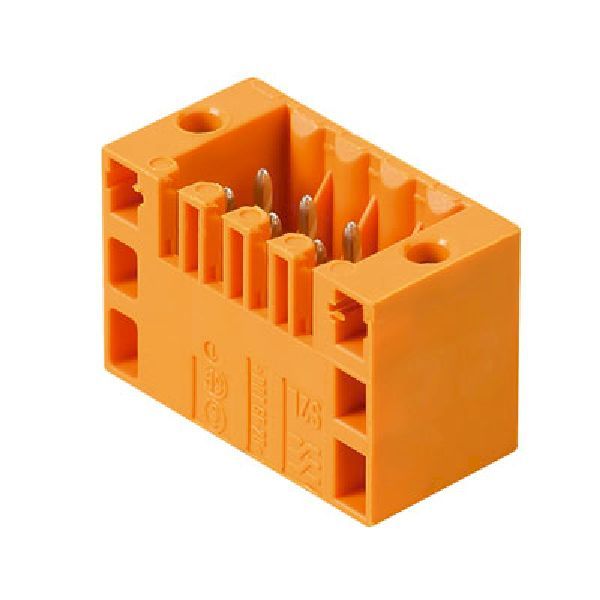

Product Images
