9-position, 1-level, straight orientation terminal block with 3.5mm pitch. Features IDC termination for 20-22AWG wire, rated for 300V and 7A. Constructed with a copper alloy contact material and tin plating, housed in UL94 V-0 rated orange plastic. Designed for free-hanging, cable mounting with a compact profile of 31.5mm length, 21.2mm width, and 12.5mm height. RoHS and lead-free compliant.
Voltage300V
Current7A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Weidmuller 1750860000 technical specifications.
General
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 7A |
| Flammability Rating | UL94 V-0 |
| Height | 12.5mm |
| Housing Color | Orange |
| Lead Free | Lead Free |
| Length | 31.5mm |
| Mount | Free Hanging, Cable |
| Number of Circuits | 9 |
| Number of Contacts | 9 |
| Number of Levels | 1 |
| Number of Positions | 9 |
| Number of Positions Per Level | 9 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 3.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Omnimate BL |
| Termination | IDC |
| Voltage | 300V |
| Width | 21.2mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1750860000 Datasheet
Download the complete datasheet for Weidmuller 1750860000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

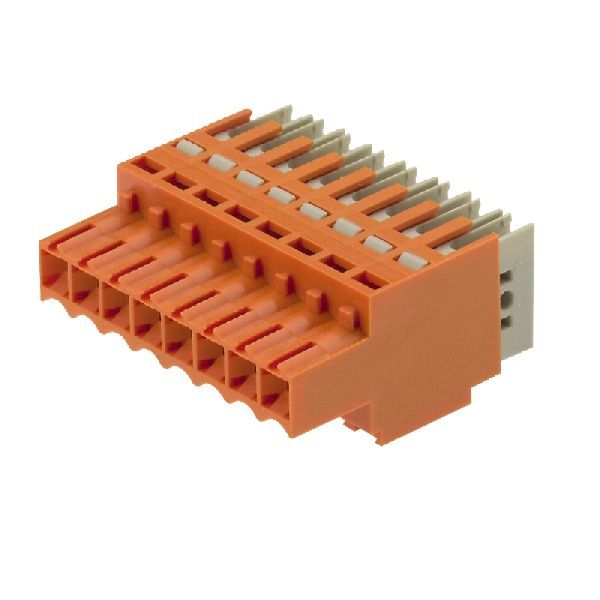

Product Images
