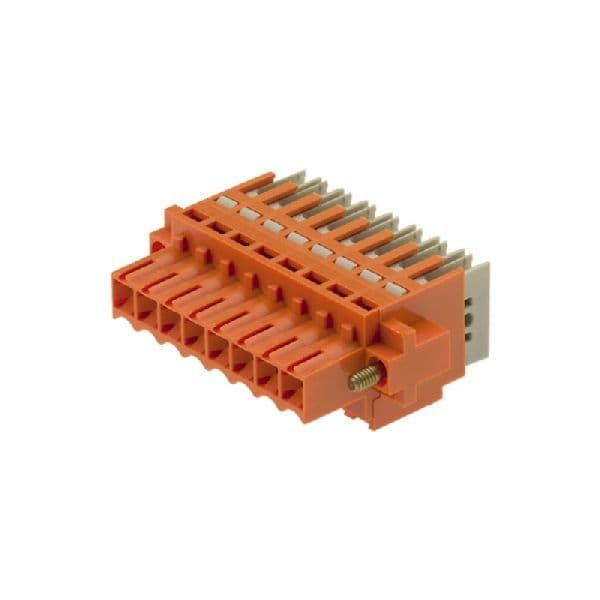

8-position, 3.5mm pitch terminal block with straight orientation and IDC termination. Features a 7A current rating, 300V voltage rating, and CuSn contacts with tin plating. Designed for panel mounting and free-hanging applications, this orange, UL94 V-0 rated component operates from -50°C to 80°C and is RoHS compliant.
Voltage300V
Current7A
Voltage Rating300V
Current Rating6A
Quick Jump:
Technical Specifications
Weidmuller 1751510000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Orange |
| Contact Material | CuSn |
| Contact Plating | Tin |
| Current | 7A |
| Current Rating | 6A |
| Flammability Rating | UL94 V-0 |
| Height | 12.5mm |
| Housing Color | Orange |
| Lead Free | Lead Free |
| Length | 34.7mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -50°C |
| Mount | Free Hanging, Panel |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Levels | 1 |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Number of Positions Per Level | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Box |
| Pitch | 3.5mm |
| Radiation Hardening | No |
| Ratings | IP20 |
| RoHS Compliant | Yes |
| Series | Omnimate BL |
| Termination | IDC |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 21.2mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
