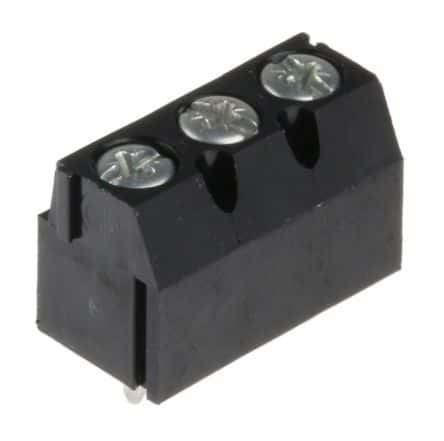

3-position, straight, through-hole terminal block with 5.08mm pitch. Features copper contacts with tin plating, rated for 15A and 300V. Designed for flexible flat cable (FFC) and flexible printed circuit (FPC) applications, supporting wire gauges from 14AWG to 26AWG. Operates within a temperature range of -50°C to 120°C and boasts a UL94 V-0 flammability rating.
Voltage300V
Current15A
Voltage Rating300V
Current Rating16A
Quick Jump:
Technical Specifications
Weidmuller 1760520000 technical specifications.
General
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 16A |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Max Current Rating | 16A |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -50°C |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Omnimate PM |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 8mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1760520000 Datasheet
Download the complete datasheet for Weidmuller 1760520000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
