Modular terminal block featuring a 600V voltage rating and 57A current rating, designed for panel mounting. This straight-orientation, single-level terminal block accommodates up to 10mm² wire gauge (6AWG to 16AWG) with 3 positions and 3 rows. Constructed from beige thermoplastic insulation, it boasts a UL94 V-0 flammability rating and is RoHS compliant. Approvals include IEC, CSA, CE, and UR.
Voltage600V
Current50A
Voltage Rating8kV
Current Rating57A
Quick Jump:
Technical Specifications
Weidmuller 1767690000 technical specifications.
General
| Approvals | IEC, CSA, CE, UR |
| Color | Beige |
| Current | 50A |
| Current Rating | 57A |
| Flammability Rating | UL94 V-0 |
| Height | 49.5mm |
| Housing Color | Beige |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 99mm |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 20 |
| Packaging | Bag |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Z |
| Terminal Width | 10.1mm |
| Voltage | 600V |
| Voltage Rating | 8kV |
| Width | 10.1mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 6AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1767690000 Datasheet
Download the complete datasheet for Weidmuller 1767690000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

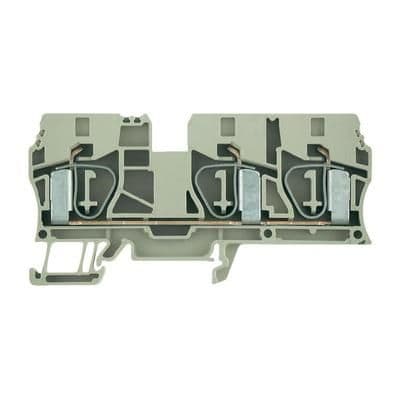

Product Images
