42-position, 2-row terminal block with 5.08mm pitch. Features straight, through-hole mounting and screw termination. Rated for 300V and 15A, with a 10A current rating. Copper alloy contacts with tin plating. Operating temperature range of -50°C to 120°C. UL94 V-0 flammability rating and RoHS compliant.
Voltage300V
Current15A
Voltage Rating300V
Current Rating10A
Quick Jump:
Technical Specifications
Weidmuller 1769430000 technical specifications.
General
| Approvals | CSA |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Height | 36.6mm |
| Housing Color | Orange |
| Lead Free | Lead Free |
| Length | 109mm |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -50°C |
| Mount | Through Hole |
| Number of Circuits | 21 |
| Number of Contacts | 42 |
| Number of Levels | 2 |
| Number of Poles | 42 |
| Number of Positions | 42 |
| Number of Positions Per Level | 21 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Box |
| Pitch | 5.08mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Omnimate LM |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 22.8mm |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1769430000 Datasheet
Download the complete datasheet for Weidmuller 1769430000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

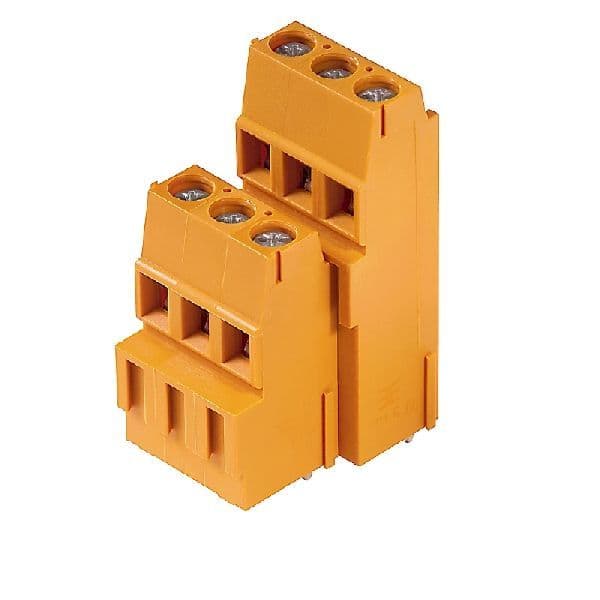

Product Images
