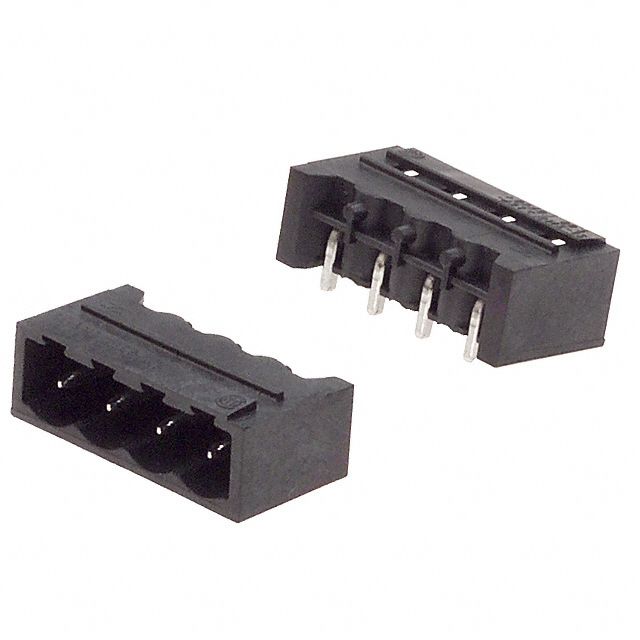

4-position shrouded male header with 5.08mm pitch, designed for right-angle, through-hole solder termination. Features a black housing, CuSn contact material with tin plating, and a 15A current rating. Operates within a -50°C to 100°C temperature range and supports up to 300V. Approvals include CSA and UR, with UL94 V-0 flammability rating.
Voltage300V
Current18.5A
Voltage Rating300V
Current Rating15A
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Weidmuller 1775022001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Weidmuller 1775022001 technical specifications.
General
| Approvals | CSA, UR |
| Color | Black |
| Contact Material | CuSn |
| Contact Plating | Tin |
| Current | 18.5A |
| Current Rating | 15A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 8.5mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 23.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -50°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Levels | 1 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Positions Per Level | 4 |
| Number of Rows | 1 |
| Packaging | Box |
| Pitch | 5.08mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Omnimate SL |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 12mm |
