Modular terminal block featuring 3 positions and 3 circuits across 1 row and 1 level. Rated for 15A current and 300V voltage, with a voltage rating of 6kV. Accommodates wire gauges from 16AWG to 30AWG. Constructed with beige thermoplastic insulation, achieving a UL94 V-0 flammability rating. Mounts via through-hole technology.
Voltage300V
Current15A
Voltage Rating6kV
Current Rating17.5A
Quick Jump:
Technical Specifications
Weidmuller 1775530000 technical specifications.
General
| Approvals | IEC, CSA, CE, UR |
| Color | Beige |
| Current | 15A |
| Current Rating | 17.5A |
| Flammability Rating | UL94 V-0 |
| Height | 36.5mm |
| Housing Color | Beige |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 63.5mm |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Number of Rows | 3 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | Z |
| Terminal Width | 3.5mm |
| Voltage | 300V |
| Voltage Rating | 6kV |
| Width | 3.5mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Weidmuller 1775530000 Datasheet
Download the complete datasheet for Weidmuller 1775530000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

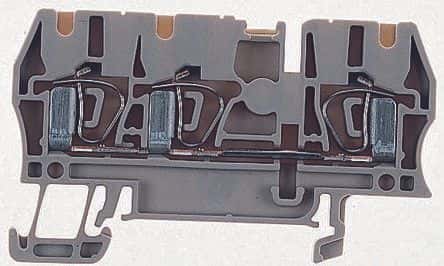

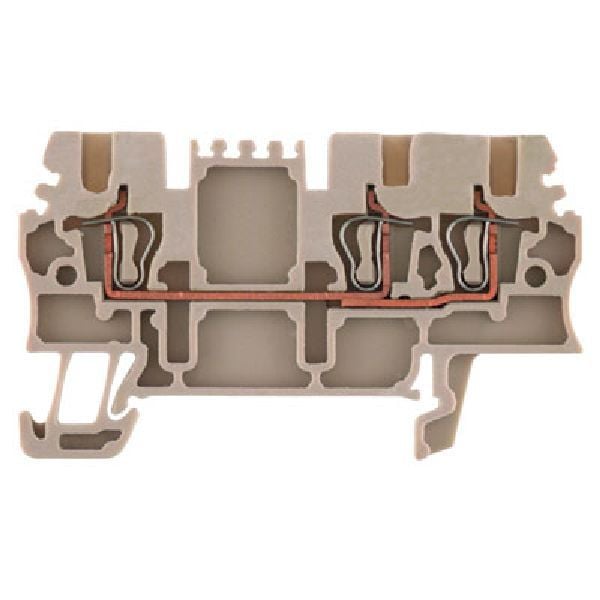

Product Images
