4-position, 1-row, vertical shrouded header for wire-to-board applications. Features 3.81mm pitch, tin-plated copper alloy contacts, and a 10A current rating. Through-hole mounting with solder termination. UL94 V-0 flammability rating and 300V voltage rating. RoHS compliant.
Voltage300V
Current10A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Weidmuller 1864090000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Weidmuller 1864090000 technical specifications.
General
| Approvals | CSA, cURus |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 17.5A |
| Flammability Rating | UL94 V-0 |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Levels | 1 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Positions Per Level | 4 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 50 |
| Packaging | Box |
| Pitch | 0.15inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Omnimate SC-SMT |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1864090000 Datasheet
Download the complete datasheet for Weidmuller 1864090000 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

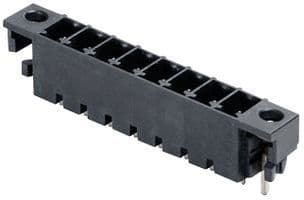

Product Images
