3-position, 5mm pitch, right-angle cable mount terminal block with screw termination. Rated for 300V and 20A, featuring copper alloy contacts with tin plating. Operates from -50°C to 100°C, with a UL94 V-0 flammability rating. Supports wire gauges from 12AWG to 30AWG.
Voltage300V
Current20A
Voltage Rating300V
Current Rating15.5A
Quick Jump:
Technical Specifications
Weidmuller 1955560000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 20A |
| Current Rating | 15.5A |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -50°C |
| Mount | Free Hanging |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Packaging | Box |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | Omnimate BL |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 12AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Weidmuller 1955560000 Datasheet
Download the complete datasheet for Weidmuller 1955560000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

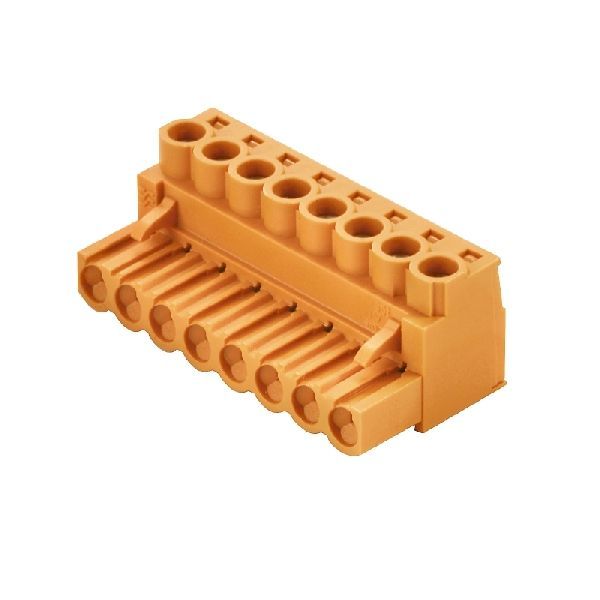

Product Images
