Technical Specifications
Wiznet NM7010B+ technical specifications.
General
| Package/Case | Module |
| Data Rate | 100Mbps |
| Height | 13.4mm |
| Interface | SPI, Ethernet |
| Lead Free | Lead Free |
| Length | 48mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Number of Ports | 1 |
| Operating Supply Current | 160mA |
| Operating Supply Voltage | 3.3V |
| Width | 25mm |
Compliance
| RoHS | Compliant |
Datasheet
Wiznet NM7010B+ Datasheet
Download the complete datasheet for Wiznet NM7010B+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

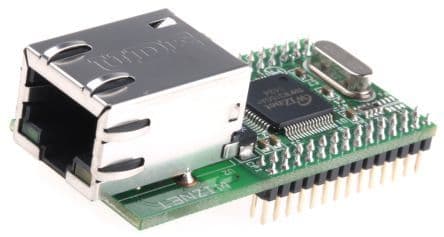

Product Images
