Bright green, single-color LED emitter in a 0603 (1608 metric) SMD package. Features a water-clear, flat rectangular lens with a 0.7mm size and 140° viewing angle. Operates with a 20mA forward current, 5V reverse voltage, and 72mW power dissipation. Offers 40mcd luminous intensity, a 0.8mm height, 1.6mm length, and 0.8mm width. Suitable for surface mounting, this component is halogen-free, RoHS, and REACH compliant.
Package0603
MountingSurface Mount
Power72mW
Quick Jump:
Technical Specifications
Wurth Electronics 150060VS75000 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Green |
| Forward Current | 20mA |
| Height | 0.8mm |
| Illumination Color | Green |
| Length | 1.6mm |
| Lens Color | Colorless |
| Lens Size | 0.7mm |
| Lens Style | Rectangular, Flat |
| Lens Transparency | Clear |
| Luminous Intensity | 40mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 5V |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Cut Tape |
| Power Dissipation | 72mW |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Series | WL-SMCW |
| Viewing Angle | 140° |
| Weight | 0.000882oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 150060VS75000 Datasheet
Download the complete datasheet for Wurth Electronics 150060VS75000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

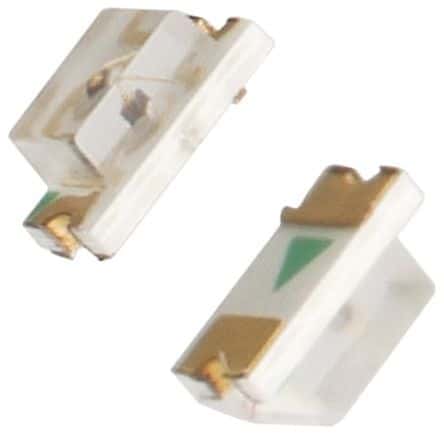

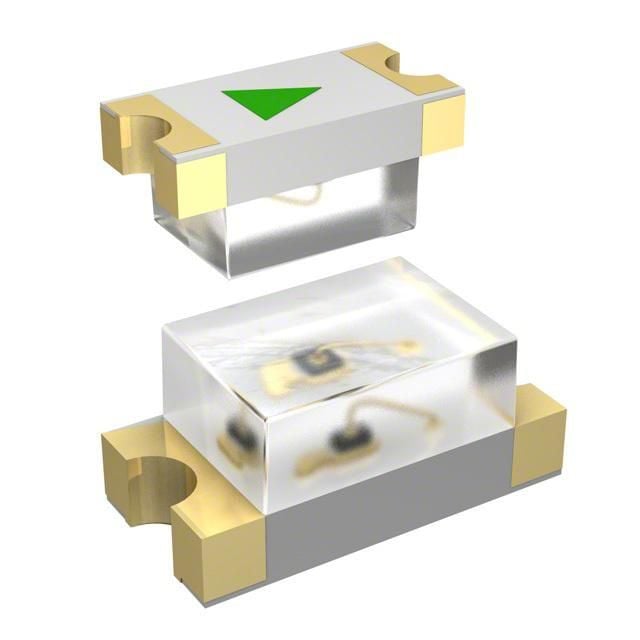

Product Images
