Bright green, single-color LED emitter with a water-clear, flat rectangular lens. Features a 1206 (3216 metric) surface mount package, 2-pin configuration, and a 140° viewing angle. Operates with a 20mA forward current and a 5V reverse voltage, delivering 40mcd luminous intensity. This halogen-free component is RoHS and REACH compliant, with dimensions of 3.2mm length, 1.6mm width, and 0.69mm height.
Package1206
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 150120VS75000 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Green |
| Forward Current | 20mA |
| Height | 0.69mm |
| Illumination Color | Green |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Size | 1.6mm |
| Lens Style | Rectangular, Flat |
| Lens Transparency | Clear |
| Luminous Intensity | 40mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 5V |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Series | WL-SMCW |
| Viewing Angle | 140° |
| Weight | 0.000353oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 150120VS75000 Datasheet
Download the complete datasheet for Wurth Electronics 150120VS75000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

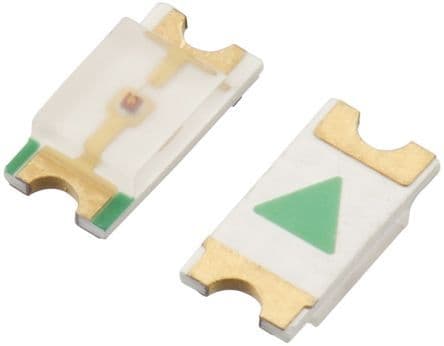

Product Images
