Surface mountable, single-color green LED emitter featuring a 3528 package with a 2.4mm clear, round, flat lens. Emitting at 525nm with a luminous intensity of 1000mcd and a 120° viewing angle, this component operates with a 30mA forward current. It boasts a compact 3.5mm length, 2.8mm width, and 2.1mm height, with a wide operating temperature range of -40°C to 85°C. This lead-free, RoHS-compliant LED is supplied on cut tape.
Package3528
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 150141GS73100 technical specifications.
General
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 3528 |
| Color | Green |
| Forward Current | 30mA |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Lens Color | Colorless |
| Lens Size | 2.4mm |
| Lens Style | Clear, Round, Flat |
| Lens Transparency | Clear |
| Luminous Intensity | 1000mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WL-SMTW |
| Viewing Angle | 120° |
| Wavelength | 525nm |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 150141GS73100 Datasheet
Download the complete datasheet for Wurth Electronics 150141GS73100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

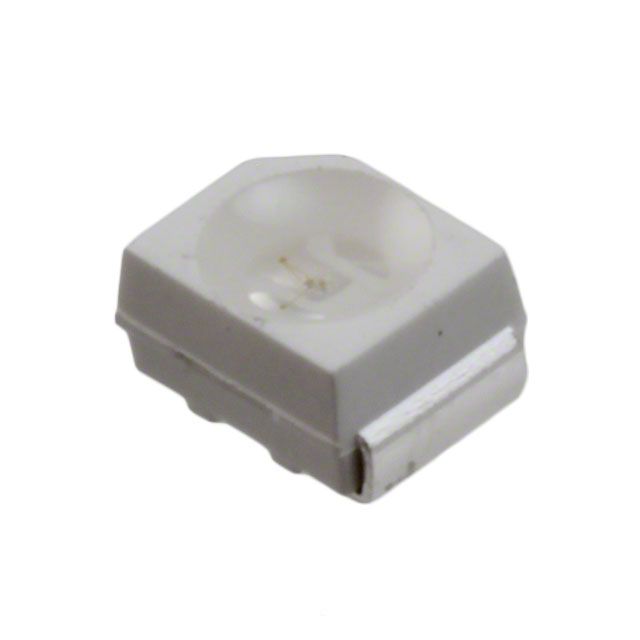

Product Images
