Surface mount standard LED emitter, 2mm diameter, featuring a yellow, water-clear, domed lens. Operates with a 25mA forward current, delivering 600mcd luminous intensity at a 525nm wavelength and a 120° viewing angle. Housed in a 1204 package with dimensions of 1.2mm height, 1.5mm width, and 3.2mm length. This component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Package1204
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 155124GS73200 technical specifications.
General
| Package/Case | 1204 |
| Color | Yellow |
| Forward Current | 25mA |
| Height | 1.2mm |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Size | 1mm |
| Lens Style | Clear, Domed, Dome |
| Lens Transparency | Clear |
| Luminous Intensity | 600mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WL-SMSW |
| Viewing Angle | 120° |
| Wavelength | 525nm |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 155124GS73200 Datasheet
Download the complete datasheet for Wurth Electronics 155124GS73200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

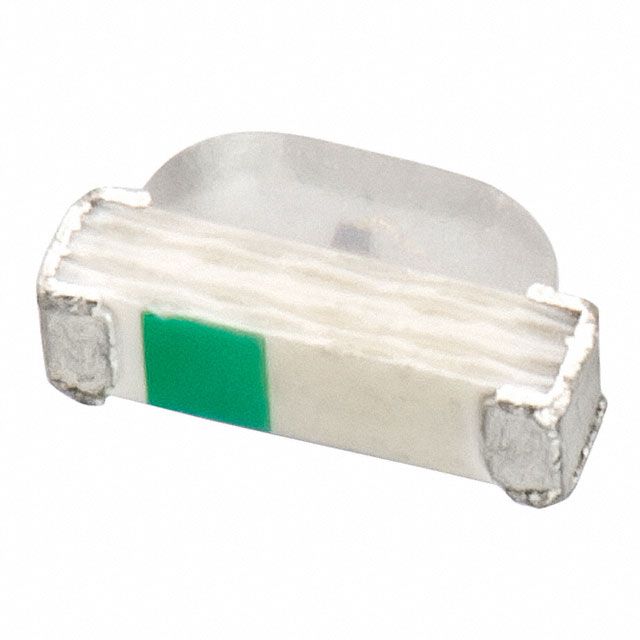

Product Images
