This surface mount LED has a wavelength of 573nm and a luminous intensity of 30mcd. It features a rectangular lens style and a clear lens transparency. The LED is available in a 1206 package and is designed for surface mount applications. It operates within a temperature range of -40°C to 80°C and is compliant with RoHS regulations.
Package1206
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 156120VS75000 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Green |
| Forward Current | 25mA |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Style | Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 30mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WL-SMRW |
| Viewing Angle | 140° |
| Wavelength | 573nm |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 156120VS75000 Datasheet
Download the complete datasheet for Wurth Electronics 156120VS75000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

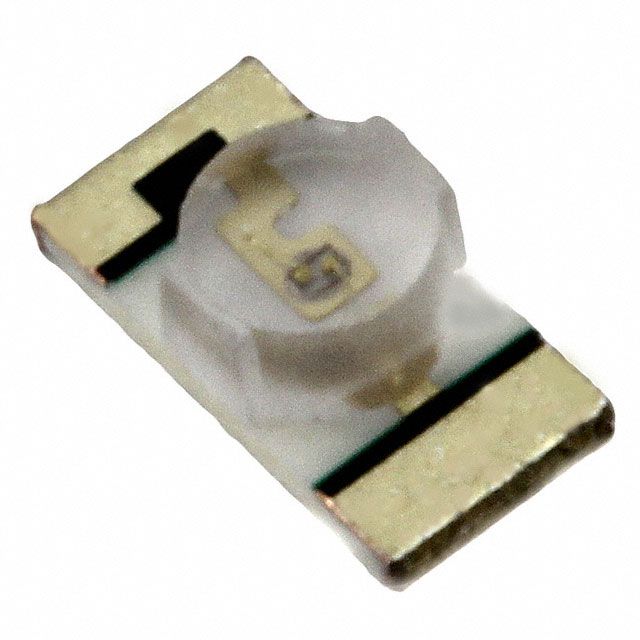

Product Images
