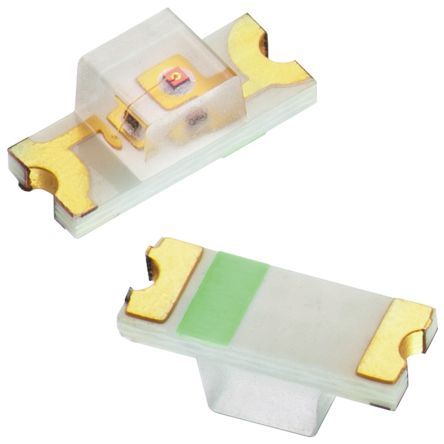

This yellow LED has a luminous intensity of 80 millicandela and a viewing angle of 140 degrees. It operates within a temperature range of -40°C to 80°C and is packaged in a 1206 case with a lead-free finish. The LED is mounted on a surface and comes in a single unit quantity with a cut tape packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 156120YS75000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Yellow |
| Forward Current | 25mA |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Style | Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 80mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WL-SMRW |
| Viewing Angle | 140° |
| Wavelength | 589nm |
| Width | 1.6mm |
| RoHS | Compliant |
