Shielded, right-angle telecom and datacom receptacle with 4 contacts and 4 positions. Features gold-plated copper alloy contacts, solder termination, and a locking mechanism. Rated for 30V and 1A, with an operating temperature range of -40°C to 105°C. Through-hole, horizontal mounting.
Voltage Rating30V
Current Rating1A
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
Wurth Electronics 61400416021 technical specifications.
General
| Color | White |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | White |
| Lead Free | Lead Free |
| Length | 15.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Horizontal |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Right Angle |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WR-COM |
| Shielding | Shielded |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| Width | 14.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 61400416021 Datasheet
Download the complete datasheet for Wurth Electronics 61400416021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

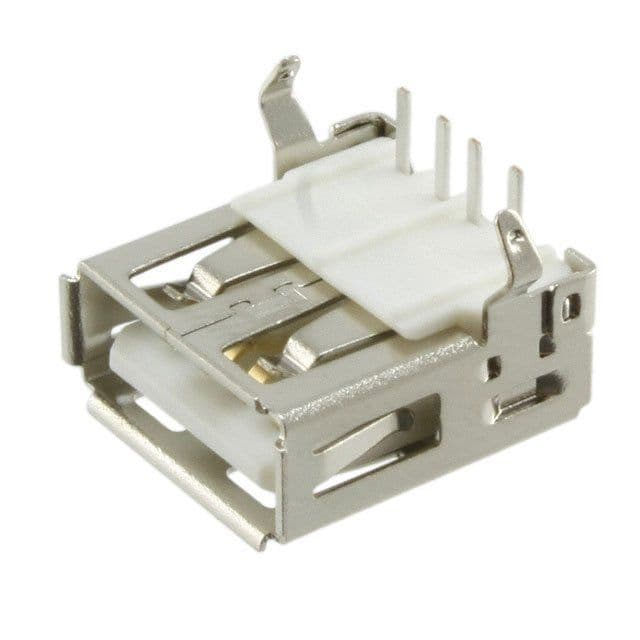

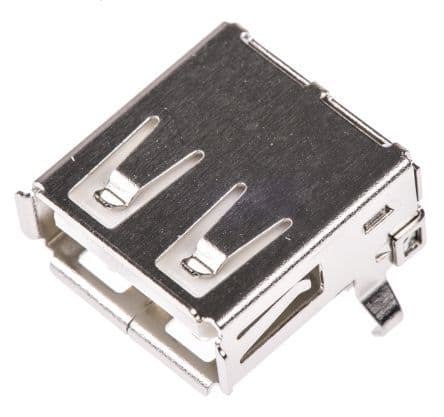

Product Images
