Wurth Electronics
615008142621
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 5 Tray
Current Rating1.5A
Quick Jump:
Technical Specifications
Wurth Electronics 615008142621 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Material | PBT |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Operating Supply Voltage | 120V |
| Package Quantity | 80 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | WR_COM |
| Shielding | Shielded |
| Termination | Through Hole |
| Voltage Rating (AC) | 120V |
| Weight | 0.204589oz |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 615008142621 Datasheet
Download the complete datasheet for Wurth Electronics 615008142621 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

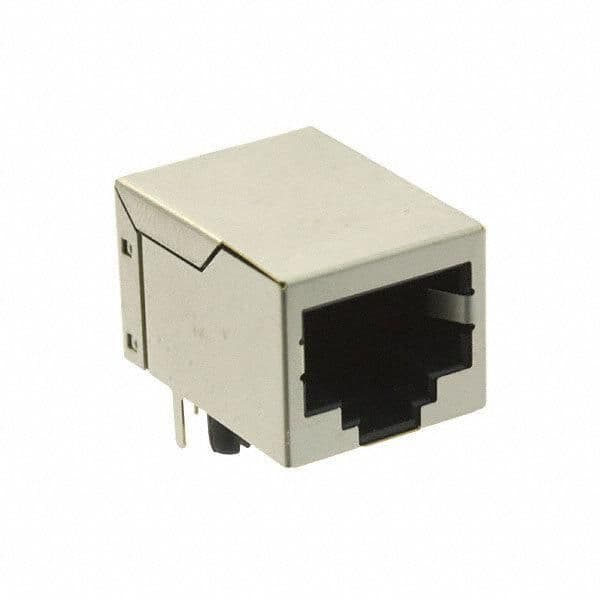

Product Images
