2-position, 1-row male header for wire-to-board applications. Features 2.54mm pitch, vertical top entry orientation, and through-hole termination. Contact material is copper alloy with tin plating, offering a 3A current rating. Insulation is beige nylon with a UL94 V-0 flammability rating. Operating temperature range is -40°C to 105°C, with a voltage rating of 250V.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Wurth Electronics 61900211121 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 14.2mm |
| Insulation Color | Beige |
| Insulation Material | Nylon |
| Length | 5.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Supply Voltage | 250V |
| Orientation | Vertical |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WR-WTB |
| Termination | Through Hole |
| Voltage Rating | 250V |
| Width | 5.12mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 61900211121 Datasheet
Download the complete datasheet for Wurth Electronics 61900211121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

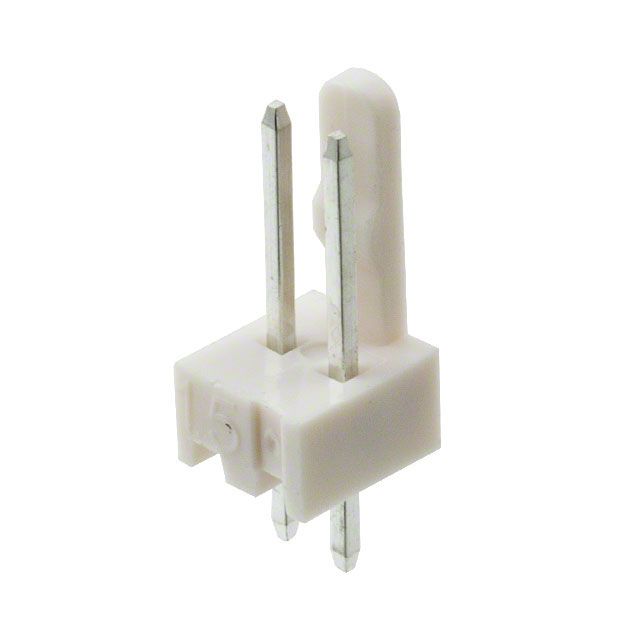

Product Images
