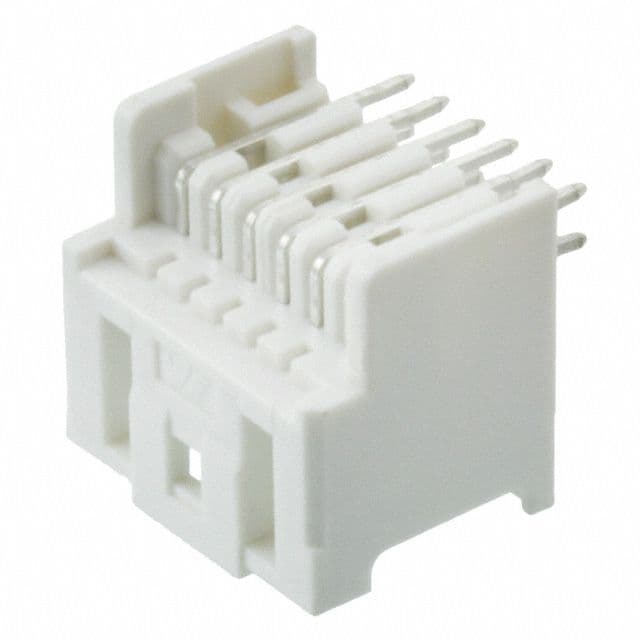

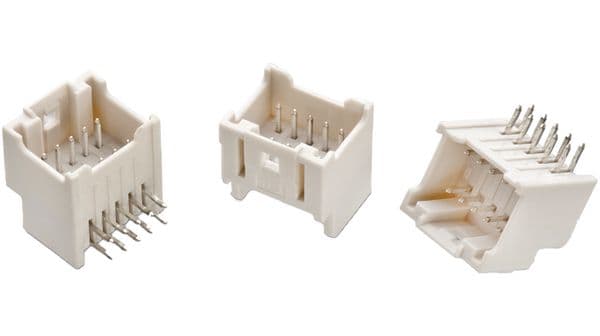

This 12-position 2-row male pin header from Wurth Electronics features a current rating of 3A and is designed for through-hole mounting. The header is packaged in a rail/Tube configuration with 36 pieces per package. It is compliant with RoHS regulations and has a termination type of solder. The header measures 11.7mm in height, 14.5mm in length, and 15.4mm in width, with a pitch of 0.079inch and a row spacing of 0.197inch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 62401221722 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | White |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Gender | Male |
| Height | 11.7mm |
| Length | 14.5mm |
| Mount | Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Package Quantity | 36 |
| Packaging | Rail/Tube |
| Pitch | 0.079inch |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.197inch |
| Series | WR-WTB 2 mm |
| Termination | Solder |
| Width | 15.4mm |
| RoHS | Compliant |
