14-position, 1.00mm pitch flat flex cable with a straight, male, 2-row orientation. Features copper contacts with tin plating, a 1A current rating, and a 60V voltage rating. This white cable measures 50mm in length and 15mm in width, with a maximum operating temperature of 85°C and a minimum of -30°C. RoHS compliant, it is designed for solder termination.
Voltage Rating60V
Current Rating1A
Quick Jump:
Technical Specifications
Wurth Electronics 686614050001 technical specifications.
General
| Color | White |
| Contact Material | Copper |
| Contact Plating | Tin |
| Current Rating | 1A |
| Gender | Male |
| Length | 50mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Number of Conductors | 14 |
| Number of Contacts | 14 |
| Number of Cores | 14 |
| Number of Poles | 14 |
| Number of Rows | 2 |
| Number of Strands | 1 |
| Number of Ways | 14 |
| Orientation | Straight |
| Pitch | 1mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WR-FCC |
| Termination | Solder |
| Voltage Rating | 60V |
| Width | 15mm |
| Wire/Cable Type | Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 686614050001 Datasheet
Download the complete datasheet for Wurth Electronics 686614050001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

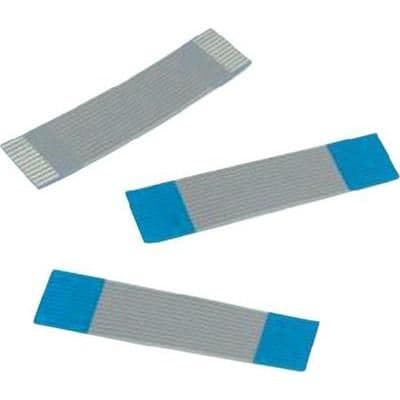

Product Images
