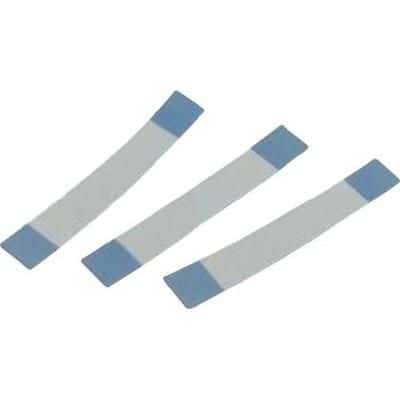

24-position, 0.5mm pitch flat flex cable with a 200mm length and 12.5mm width. Features same-side contact location, copper contacts with tin plating, and a straight orientation. Rated for 500mA current and 60V voltage, with an operating temperature range of -30°C to 105°C. This male connector is designed for cable termination.
Voltage Rating60V
Current Rating500mA
Quick Jump:
Technical Specifications
Wurth Electronics 687624200002 technical specifications.
General
Color
White
Contact Location
Same Side
Contact Material
Copper
Contact Plating
Tin
Current Rating
500mA
Gender
Male
Length
200mm
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Number of Conductors
24
Number of Contacts
24
Number of Cores
24
Number of Poles
24
Number of Rows
2
Number of Strands
1
Number of Ways
24
Orientation
Straight
Pitch
0.5mm
Reach SVHC Compliant
Unknown
Series
WR-FCC
Termination
Cable
Voltage Rating
60V
Width
12.5mm
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 687624200002 Datasheet
Download the complete datasheet for Wurth Electronics 687624200002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
