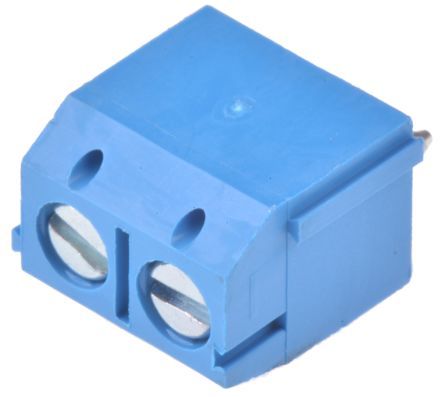

2-position, 5mm pitch terminal block with solder termination. Features brass contacts with tin plating, rated for 15A and 300V. Through-hole mounting design with a single level and two positions per level. Operating temperature range from -40°C to 105°C. Accommodates wire gauges from 14AWG to 22AWG.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
Wurth Electronics 691102710002 technical specifications.
General
| Color | Blue |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 15A |
| Height | 13.4mm |
| Length | 7.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Positions Per Level | 2 |
| Pitch | 5mm |
| Plating | Steel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WR-TBL Series 102 |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 11.2mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
