Dual-port, right-angle USB 3.0 Type-A receptacle with 18 contacts, designed for through-hole mounting. Features gold-plated bronze and copper alloy contacts for 5000 mating cycles and a 1.8A current rating. Operates within a -20°C to 85°C temperature range, with a 30V voltage rating and UL94 V-0 flammability. This shielded, lead-free component offers a blue insulation color and is supplied in tray packaging.
Voltage Rating30V
Current Rating1.8A
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
Wurth Electronics 692141030100 technical specifications.
General
Color
Blue
Contact Material
Bronze, Copper Alloy
Contact Plating
Gold
Current Rating
1.8A
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
16.335mm
Insulation Color
Blue
Lead Free
Lead Free
Length
15.59mm
Mating Cycles
5000
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Through Hole, Horizontal
Number of Contacts
18
Number of Ports
2
Operating Supply Voltage
30V
Orientation
Right Angle
Packaging
Tray
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WR-COM
Shielding
Shielded
Termination
Solder
USB Standard
USB 3.0
Voltage Rating
30V
Voltage Rating (AC)
30V
Width
19.7mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 692141030100 Datasheet
Download the complete datasheet for Wurth Electronics 692141030100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

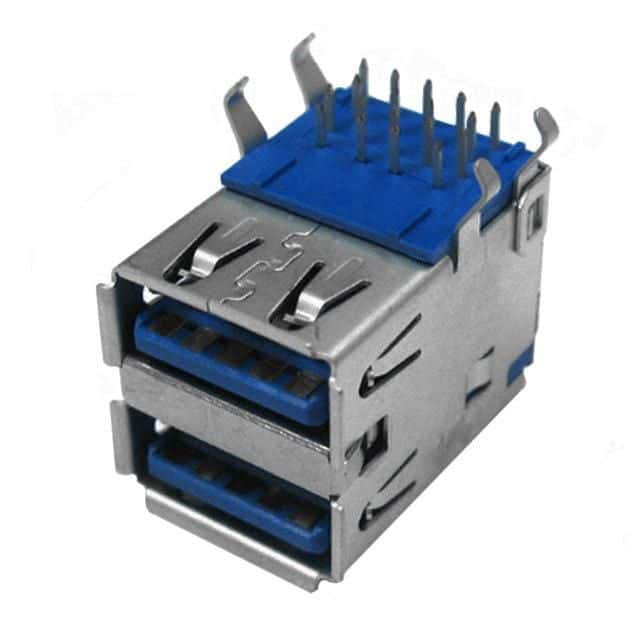

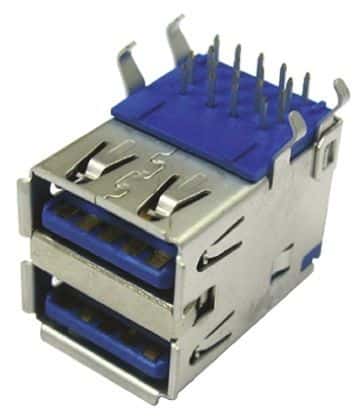

Product Images
