WURTH ELECTRONICS

692622030100

Datasheet

USB 3.0 Receptacle, 1.8A, 30V, Gold Plated, Shielded, SMT, 10 Pos

Wurth Electronics

692622030100

Name: 692622030100 Wurth Electronics
Brand: Wurth Electronics
SKU: 692622030100

USB 3.0 Receptacle, 1.8A, 30V, Gold Plated, Shielded, SMT, 10 Pos

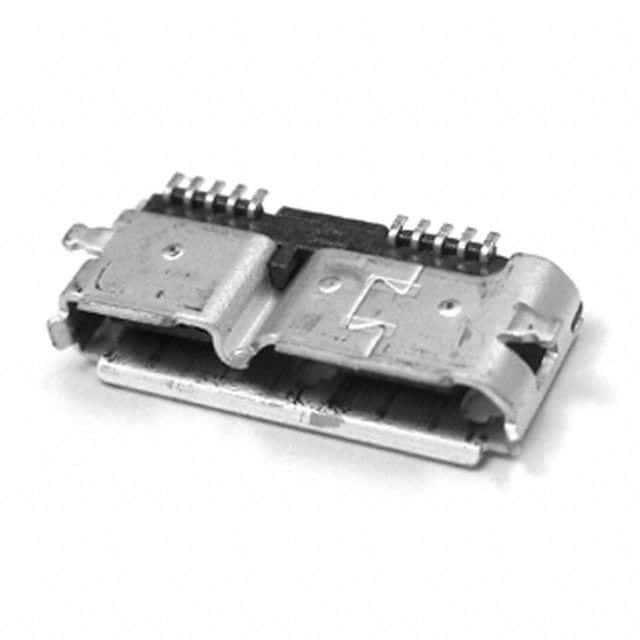

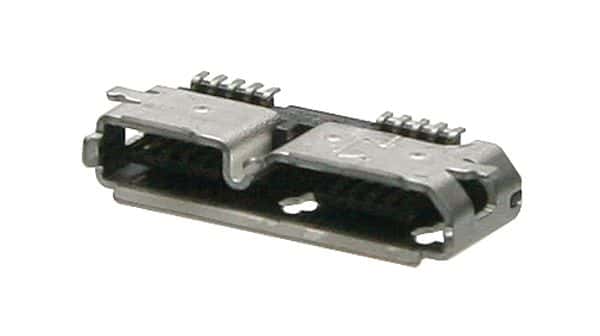

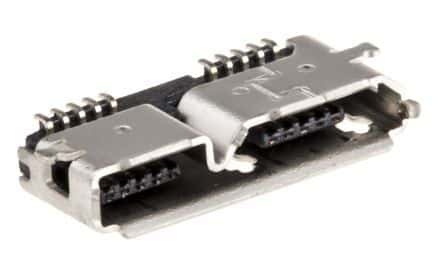

USB 3.0 Type Micro-B receptacle, right-angle, surface mount connector with 10 contacts. Features gold-plated bronze and copper alloy contacts, a 1.8A current rating, and 30V voltage rating. This shielded connector has a black insulation color, a 3mm height, and a 12.85mm length, suitable for 10,000 mating cycles. Rated UL94 V-0 for flammability and operates between -20°C and 85°C.

Voltage Rating30V

Current Rating1.8A

MountingSurface Mount, Horizontal

Quick Jump:

Technical Specifications

Wurth Electronics 692622030100 technical specifications.

General

Color	Black
Contact Material	Bronze, Copper Alloy
Contact Plating	Gold
Current Rating	1.8A
Features	Shielded
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	3mm
Insulation Color	Black
Lead Free	Lead Free
Length	12.85mm
Mating Cycles	10000
Max Operating Temperature	85°C
Min Operating Temperature	-20°C
Mount	Surface Mount, Horizontal
Number of Contacts	10
Number of Ports	1
Operating Supply Voltage	30V
Orientation	Right Angle
Package Quantity	1
Packaging	Tape and Reel
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	WR-COM
Shielding	Shielded
Termination	Solder
USB Standard	USB 3.0
Voltage Rating	30V
Voltage Rating (AC)	30V
Width	5.6mm
