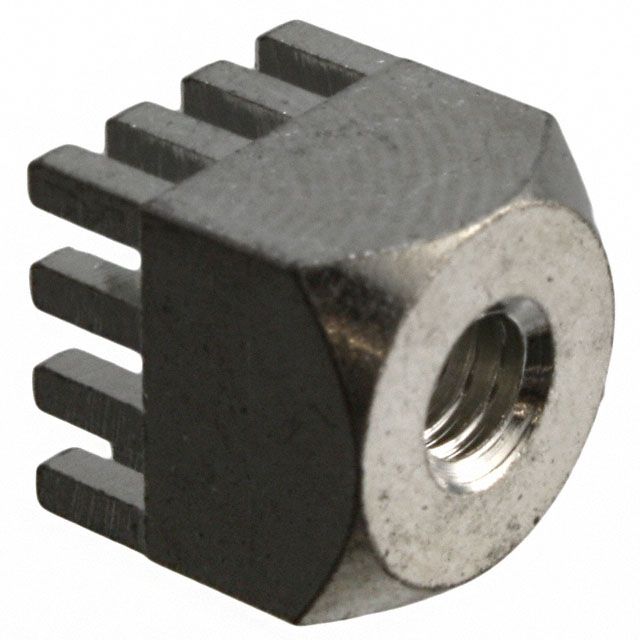

General purpose, non-insulated ground terminal featuring a brass body and tin-plated copper contacts. Rated for 120A, this through-hole mount terminal offers a press-fit termination method. Operating temperature range spans from -40°C to 135°C, with dimensions of 9mm length, 9mm width, and 9.5mm height. This RoHS compliant component is supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 7461086 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Wurth Electronics 7461086 technical specifications.
| Contact Material | Copper |
| Contact Plating | Tin |
| Current Rating | 120A |
| Height | 9.5mm |
| Insulation | Non-Insulated |
| Length | 9mm |
| Material | Brass |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 12 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | REDCUBE WP-BUCF |
| Termination | Press-Fit |
| Width | 9mm |
| RoHS | Compliant |
