Shielded, right-angle modular Ethernet connector with 8 positions and 8 contacts. Features a 2.54mm pitch, 14mm height, and 16mm width, with a 22mm length. Contact material includes ferrite and tin with gold plating, and it offers 350uH inductance. Designed for through-hole mounting with solder terminals, this female connector operates from 0°C to 70°C and meets UL94 V-0 flammability rating and RoHS compliance.
MountingThrough Hole
Inductance350uH
Quick Jump:
Technical Specifications
Wurth Electronics 7499010211A technical specifications.
General
| Color | Green, Yellow |
| Contact Material | Ferrite, Tin |
| Contact Plating | Gold |
| Direction | Down |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 14mm |
| Inductance | 350uH |
| Lead Free | Lead Free |
| Length | 22mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-RJ45 LAN |
| Shielding | Shielded |
| Termination | Through Hole |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7499010211A Datasheet
Download the complete datasheet for Wurth Electronics 7499010211A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

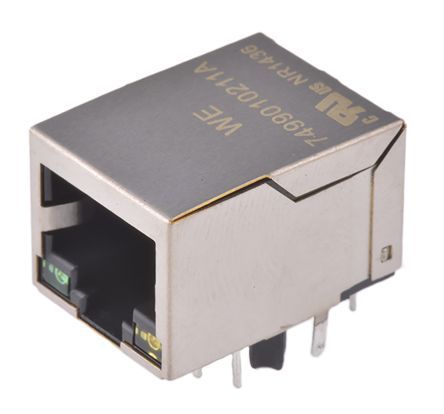

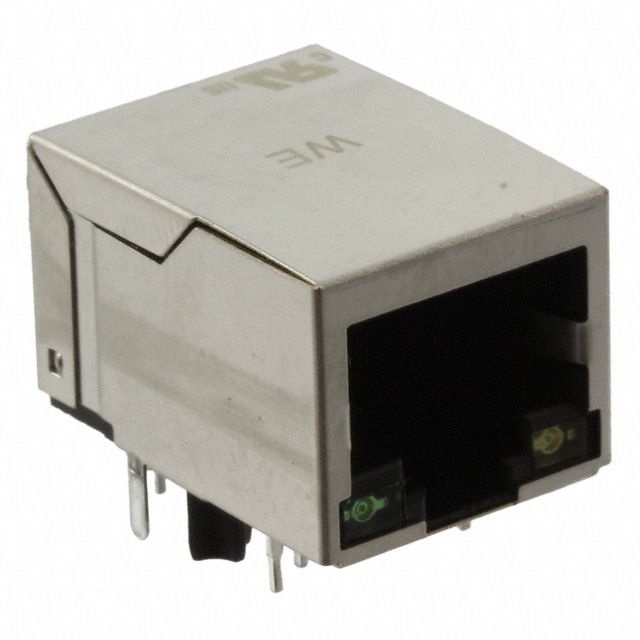

Product Images
