Constant current LED driver with 700mA output current and up to 28V output voltage, delivering 20W maximum output power. Features analog and PWM dimming, 95% efficiency, and short-circuit protection (SCP). Operates across a wide temperature range of -40°C to 85°C with a maximum input voltage of 30V. Chassis mountable with wire lead termination, this component is rated IP67 and designed for robust applications.
MountingChassis Mount
Power20W
Quick Jump:
Technical Specifications
XP Power LDU2430S700-WD technical specifications.
General
Approvals
EN
Dimming
Analog, PWM
Efficiency
95%
Features
SCP
Height
0.4inch
Length
0.92inch
Max Input Voltage
30V
Min Input Voltage
7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
700mA
Max Output Power
20W
Max Output Voltage
28V
Max Power Dissipation
20W
Mount
Chassis Mount
Number of Outputs
1
Output Current
700mA
Output Power
20W
Output Voltage
28V
Package Quantity
21
Ratings
IP67
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
LDU24
Termination
Wire Leads
Weight
0.024lb
Width
0.55inch
Compliance
RoHS
Not Compliant
Datasheet
XP Power LDU2430S700-WD Datasheet
Download the complete datasheet for XP Power LDU2430S700-WD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

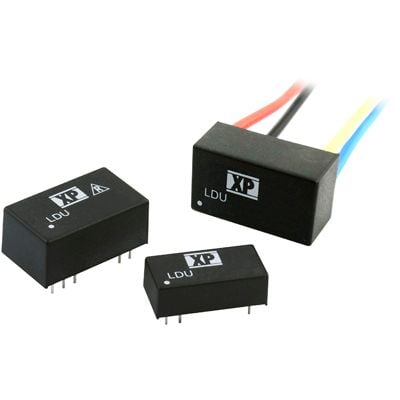

Product Images
