32-bit ARM Cortex-M4 microcontroller featuring a 180MHz CPU with DSP and FPU capabilities. Includes 2MB FLASH memory, 256KB RAM, and an ART Accelerator for enhanced performance. Offers extensive connectivity with I2C, SPI, USB, CAN, Ethernet, and more. Equipped with 140 programmable I/Os, 24 ADC channels, and 14 timers. Packaged in BGA, operating from 1.8V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency180MHz
PackageBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F427IIH6 technical specifications.
General
Package/Case
BGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
180MHz
Interface
I2C, SPI, USB, CAN, SDIO, UART, USART, IrDA, LIN, EBI/EMI, Ethernet, I2S
Lead Free
Lead Free
Max Frequency
180MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
2MB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of ADC Channels
24
Number of I/Os
140
Number of Programmable I/O
140
Number of Timers/Counters
14
Oscillator Type
Internal
Package Quantity
1008
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
256KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F4
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F427IIH6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F427IIH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

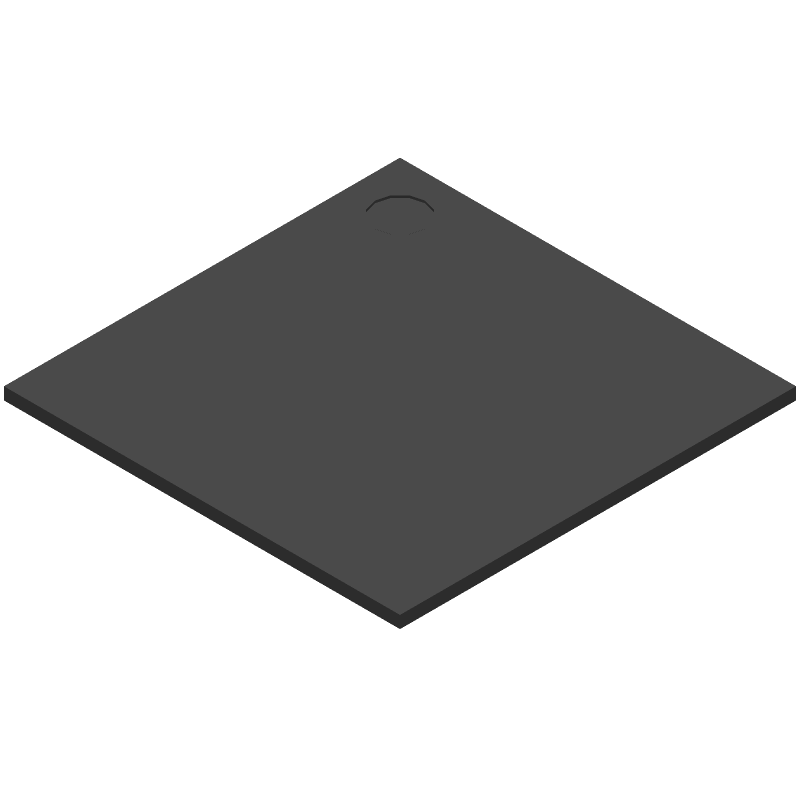

Product Images
