High-performance 32-bit microcontroller featuring an ARM Cortex-M3 core operating at 120MHz. Integrated 1MB FLASH memory with ART Accelerator for enhanced performance. Offers extensive connectivity including Ethernet, dual USB, multiple I2C, SPI, UART, and CAN interfaces. Includes 24 ADC channels, 14 timers, and 114 programmable I/Os. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C.
Frequency120MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F207ZGT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
120MHz
Height
1.45mm
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, SDIO, CAN, LIN, I2S
Lead Free
Lead Free
Length
20.2mm
Max Frequency
120MHz
Max Operating Temperature
85°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Memory Size
1024KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
24
Number of Ethernet Channels
1
Number of I/Os
114
Number of I2C Channels
3
Number of Programmable I/O
24
Number of PWM Channels
4
Number of SPI Channels
3
Number of Timers/Counters
14
Number of UART Channels
2
Number of USB Channels
2
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD, I2C
Radiation Hardening
No
RAM Size
132KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F2
Watchdog Timer
Yes
Width
20.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F207ZGT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F207ZGT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

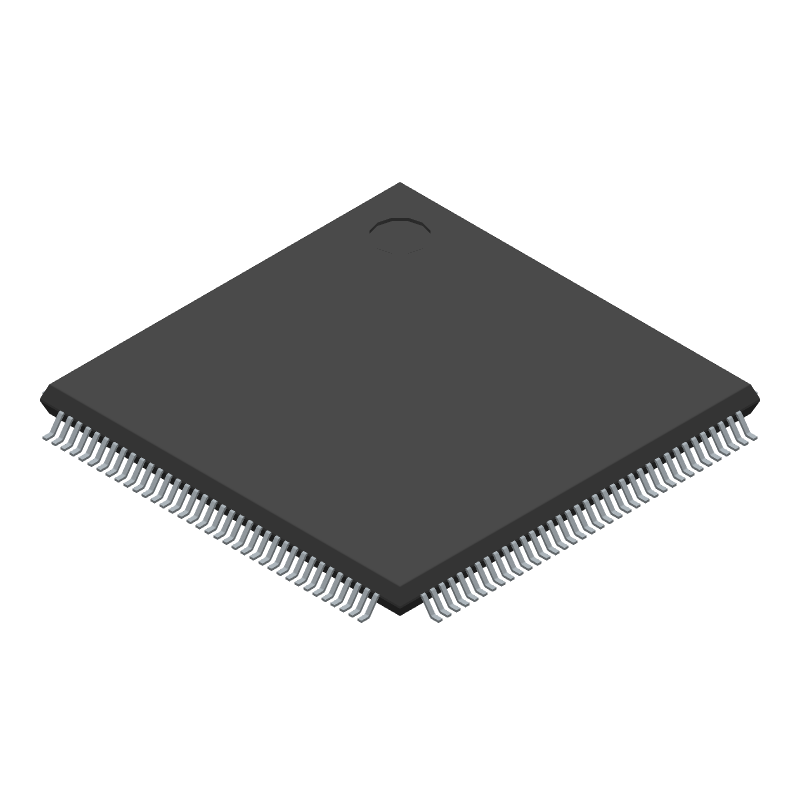

Product Images
