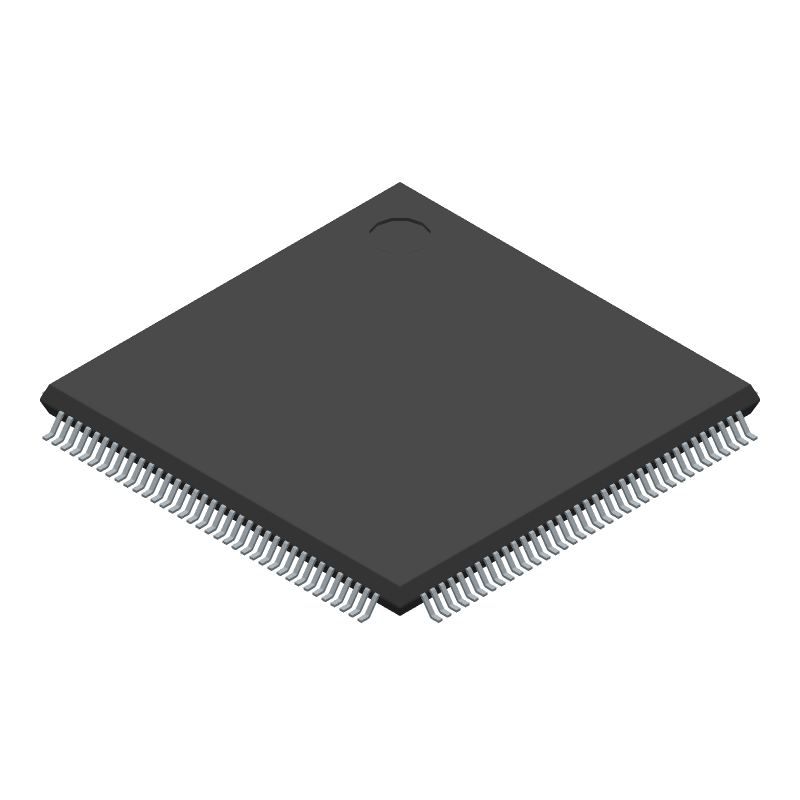

32-bit ARM Cortex-M3 microcontroller featuring a 120MHz CPU with ART Accelerator and Ethernet connectivity. This LQFP packaged MCU offers 256KB FLASH and 96KB RAM, supporting a wide range of interfaces including I2C, SPI, USB, Ethernet, UART, CAN, and I2S. With 114 programmable I/Os, 24 ADC channels, and 14 timers, it provides extensive peripheral capabilities for diverse applications. Operating from 1.8V to 3.6V, this RoHS compliant component is designed for demanding embedded systems.
Frequency120MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F207ZCT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
120MHz
Height
1.45mm
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, LIN, CAN, I2S
Lead Free
Lead Free
Length
20.2mm
Max Frequency
120MHz
Max Operating Temperature
85°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
24
Number of Ethernet Channels
1
Number of I/Os
114
Number of I2C Channels
3
Number of Programmable I/O
114
Number of PWM Channels
4
Number of SPI Channels
3
Number of Timers/Counters
14
Number of UART Channels
2
Number of USB Channels
2
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F2
Watchdog Timer
Yes
Width
20.2mm
Compliance
RoHS
Compliant
