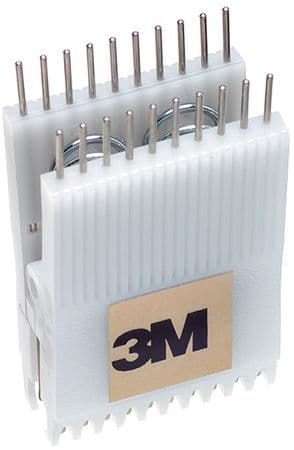

Eight-position, male integrated circuit test clip featuring a straight, through-hole mount and solder termination. Constructed with a copper alloy contact material and gold plating, this component offers a 3m lead length and is rated UL94 V-0 for flammability. Designed for test and measurement applications, it is suitable for use with oscilloscopes and multimeters.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
3M 923690-08 technical specifications.
General
Package/Case
DIP
Contact Material
Copper Alloy
Contact Plating
Gold
Flammability Rating
UL94 V-0
Gender
Male
Lead Free
Not Applicable
Lead Length
3m
Length
3m
Material
Glass, Polyester
Mount
Through Hole
Number of Contacts
8
Number of Poles
8
Number of Ports
1
Number of Positions
8
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
Unknown
Sensing Distance
3m
Series
923
Termination
Solder
Type
Integrated Circuit (IC)
Weight
0.8oz
Width
0.3inch
Compliance
RoHS
Compliant
Datasheet
3M 923690-08 Datasheet
Download the complete datasheet for 3M 923690-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
