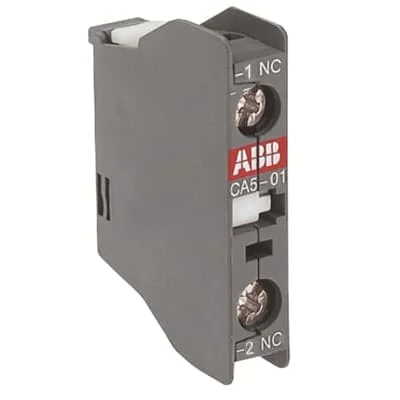

CA5-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
Quick Jump:
Technical Specifications
ABB CA5-01 technical specifications.
General
Reach SVHC Compliant
Yes
Product Net Width
11 mm
Product Net Depth / Length
32.5 mm
Product Net Height
47 mm
Product Net Weight
0.014 kg
Number of Poles
1P
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
0
Rated Frequency (f)
Auxiliary Circuit 50 / 60 Hz
Short-Circuit Protective Devices
Auxiliary Circuit - gG Type Fuses 10 A
Maximum Electrical Switching Frequency
1200 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Compliance
RoHS
Not Compliant
Rohs Information
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Datasheet
ABB CA5-01 Datasheet
Download the complete datasheet for ABB CA5-01 to view detailed technical specifications.
