Real Time Clock (RTC) IC with SPI interface, offering 256 bytes of non-volatile memory for clock, calendar, alarm, timer, and interrupt functions. Features YY-MM-DD-dd date format and HH:MM:SS:hh time format. Operates from 1.7V to 3.6V supply voltage with a nominal voltage of 3.6V. Designed for surface mount installation in a QFN package, suitable for industrial temperature ranges from -40°C to 85°C. This RoHS compliant component is supplied on tape and reel.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon AB0815-T3 technical specifications.
General
| Package/Case | QFN |
| Date Format | YY-MM-DD-dd |
| Interface | SPI |
| Lead Free | Lead Free |
| Logic Function | Clock |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256B |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Non-volatile Memory Size | 256B |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 3.6V |
| Temperature Grade | INDUSTRIAL |
| Time Format | HH:MM:SS:hh |
Compliance
| RoHS | Compliant |
Datasheet
Abracon AB0815-T3 Datasheet
Download the complete datasheet for Abracon AB0815-T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

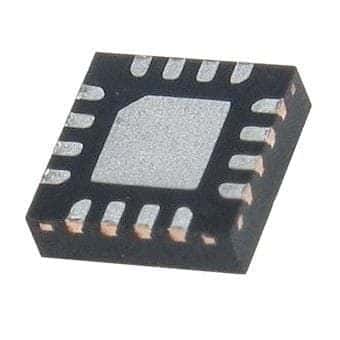

Product Images
