Abracon
ABL-11.0592MHZ-B2
Microprocessor Crystal; Frequency:11.0592MHz; Frequency Tolerance:20ppm; Load Capacitance:18pF; Crystal Terminals:Radial Leaded; ESR:50ohm; Leaded Process Compatible:Yes; Mounting Type:Through Hole; Oscillator Type:TCXO RoHS Compliant: Yes
Frequency11.0592MHz
MountingThrough Hole
Quick Jump:
Technical Specifications
Abracon ABL-11.0592MHZ-B2 technical specifications.
General
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 11.0592MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 20ppm |
| Height | 3.5mm |
| Lead Free | Lead Free |
| Length | 11.5mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Frequency | 11.0592 MHz |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ABL |
| Series Resistance | 50R |
| Termination | Radial |
| Tolerance | 20ppm |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABL-11.0592MHZ-B2 Datasheet
Download the complete datasheet for Abracon ABL-11.0592MHZ-B2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

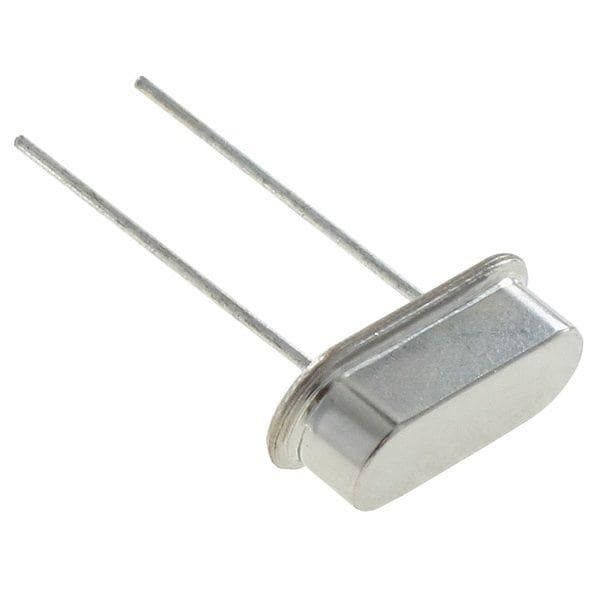

Product Images
