The ABL-16.384MHZ-B2 crystal from Abracon is a through-hole component with a frequency of 16.384MHz and an equivalent series resistance of 40 ohms. It has a frequency tolerance of 20ppm and operates within a temperature range of -20°C to 70°C. This crystal is lead-free and compliant with Reach SVHC regulations.
Frequency16.384MHz
MountingThrough Hole
Quick Jump:
Technical Specifications
Abracon ABL-16.384MHZ-B2 technical specifications.
General
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 16.384MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.138inch |
| Lead Free | Lead Free |
| Length | 0.453inch |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Frequency | 16.384 MHz |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Series | ABL |
| Series Resistance | 40R |
| Termination | Radial |
| Tolerance | 20ppm |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABL-16.384MHZ-B2 Datasheet
Download the complete datasheet for Abracon ABL-16.384MHZ-B2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

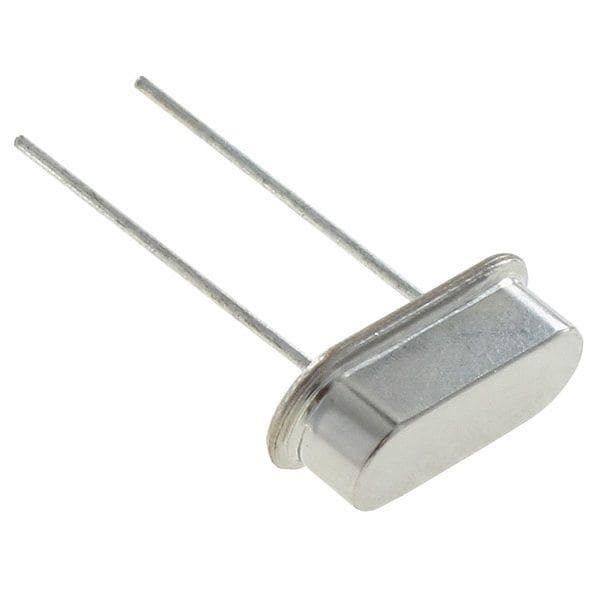

Product Images
