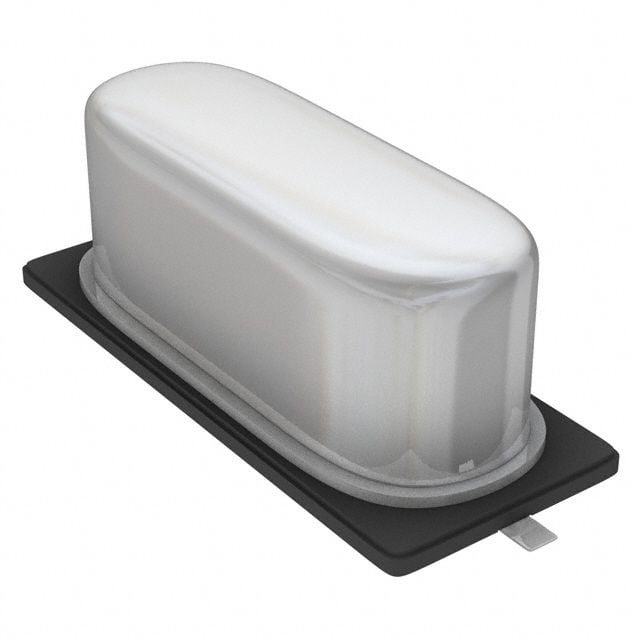

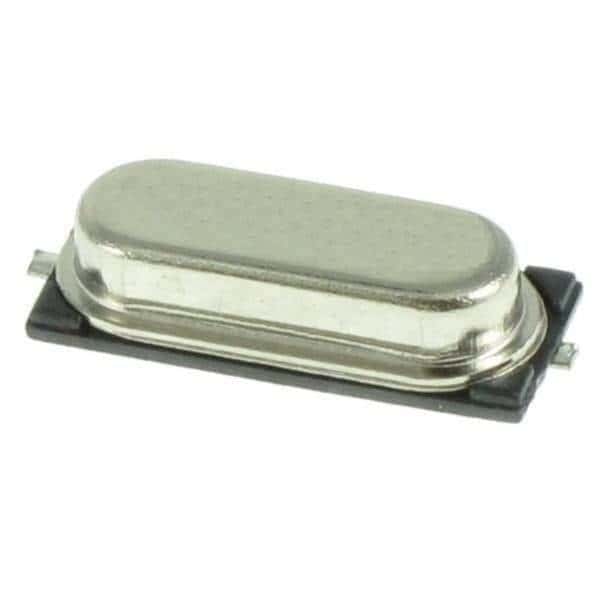

ABLS-13.4916MHZ-10-R20-D-T

CRYSTAL 13.4916MHZ 10PF SMD

Frequency13.4916MHz

MountingSurface Mount

Quick Jump:

Abracon ABLS-13.4916MHZ-10-R20-D-T technical specifications.

ESR (Equivalent Series Resistance)	50R
Frequency	13.4916MHz
Frequency Stability	50ppm
Frequency Tolerance	50ppm
Height	0.165inch
Lead Free	Lead Free
Length	0.449inch
Load Capacitance	10pF
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Packaging	Cut Tape
RoHS Compliant	Yes
Series	ABLS
Width	0.185inch

RoHS

Compliant
