Frequency22.1184MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABLS-22.1184MHZ-B2-T technical specifications.
General
Package/Case
SMD/SMT
Depth
4.7mm
ESR (Equivalent Series Resistance)
40R
Frequency
22.1184MHz
Frequency Stability
50ppm
Frequency Tolerance
20ppm
Height
0.165inch
Lead Free
Lead Free
Length
11.4mm
Load Capacitance
18pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Frequency
22.1184 MHz
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Series
ABLS
Series Resistance
40R
Termination
SMD/SMT
Tolerance
20ppm
Width
0.185inch
Compliance
RoHS
Compliant
Datasheet
Abracon ABLS-22.1184MHZ-B2-T Datasheet
Download the complete datasheet for Abracon ABLS-22.1184MHZ-B2-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

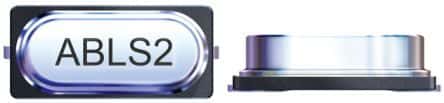

Product Images
