6 MHz fundamental quartz crystal for frequency control and timing applications. Features a 30ppm frequency tolerance and stability across an operating temperature range of -40°C to 85°C. This surface mount component has a load capacitance of 18pF and an equivalent series resistance of 100 Ohms. Packaged in tape and reel, it is RoHS compliant.
Frequency6MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABLS2-6.000MHZ-D4Y-T technical specifications.
General
Depth
4.7mm
ESR (Equivalent Series Resistance)
100R
Frequency
6MHz
Frequency Stability
30ppm
Frequency Tolerance
30ppm
Height
3.3mm
Lead Free
Lead Free
Length
11.4mm
Load Capacitance
18pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Frequency
6 MHz
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ABLS2
Series Resistance
100R
Termination
SMD/SMT
Tolerance
30ppm
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Abracon ABLS2-6.000MHZ-D4Y-T Datasheet
Download the complete datasheet for Abracon ABLS2-6.000MHZ-D4Y-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

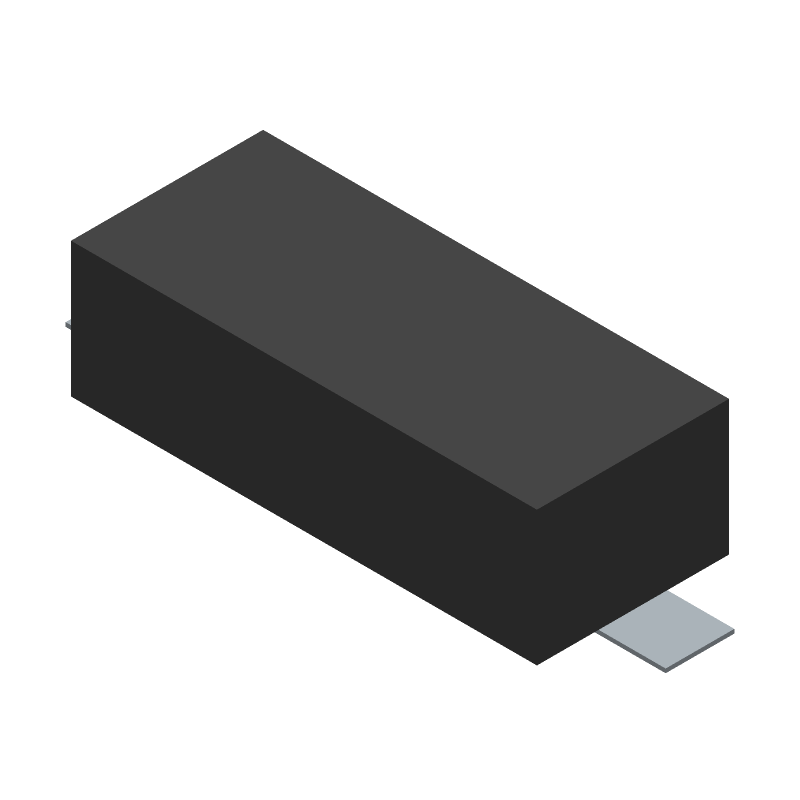

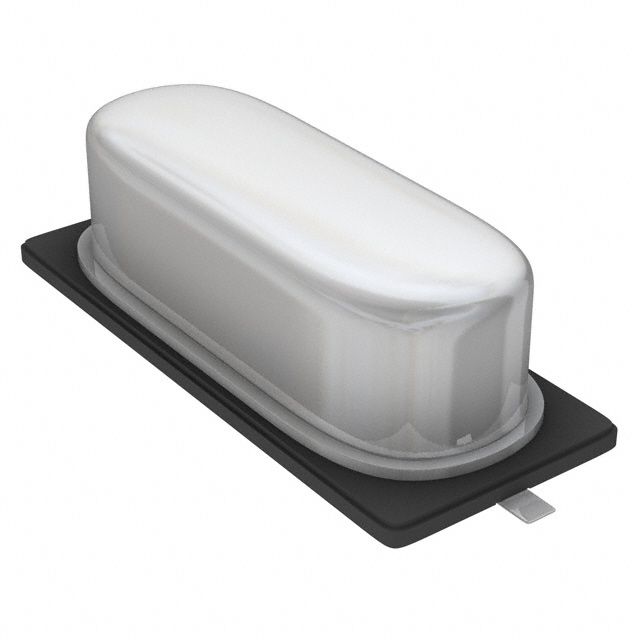

Product Images
