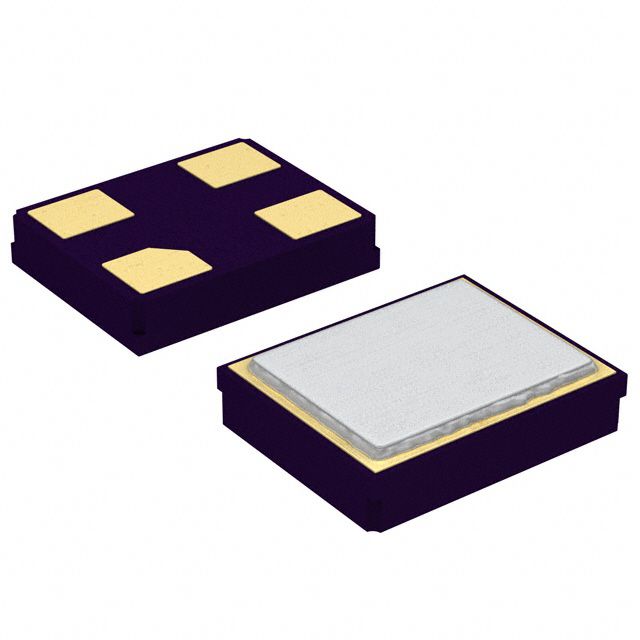

ABM10-48.000MHZ-E20-T

Name: ABM10-48.000MHZ-E20-T Abracon
Brand: Abracon
SKU: ABM10-48.000MHZ-E20-T

CRYSTAL 48.0000MHZ 10PF SMD

Frequency48MHz

PackageCSMD

MountingSurface Mount

Quick Jump:

Abracon ABM10-48.000MHZ-E20-T technical specifications.

Package/Case	CSMD
Depth	2mm
ESR (Equivalent Series Resistance)	70R
Frequency	48MHz
Frequency Stability	20ppm
Frequency Tolerance	20ppm
Height	0.5mm
Lead Free	Lead Free
Length	2.5mm
Load Capacitance	10pF
Max Operating Temperature	70°C
Min Operating Temperature	-20°C
Mount	Surface Mount
Operating Frequency	48 MHz
Package Quantity	1000
Packaging	Tape and Reel
RoHS Compliant	Yes
Series	ABM10
Series Resistance	70R
Termination	SMD/SMT
Tolerance	20ppm
Width	2mm
