20MHz fundamental quartz crystal for frequency control applications. Features a compact 2mm x 1.6mm x 0.59mm SMD/SMT package with surface mount termination. Offers a frequency tolerance and stability of 20ppm, with a load capacitance of 10pF and an ESR of 120 Ohms. Operates across a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency20MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM11-20.000MHZ-D2X-T3 technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 120R |
| Frequency | 20MHz |
| Frequency Stability | 20ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.59mm |
| Length | 2mm |
| Load Capacitance | 10pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ABM11 |
| Series Resistance | 120R |
| Termination | SMD/SMT |
| Tolerance | 20ppm |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABM11-20.000MHZ-D2X-T3 Datasheet
Download the complete datasheet for Abracon ABM11-20.000MHZ-D2X-T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

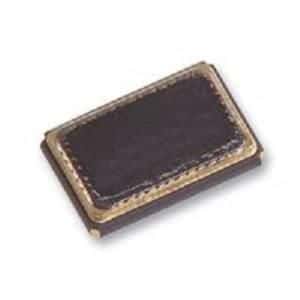

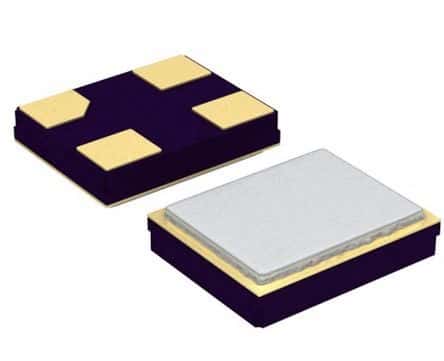

Product Images
