Ultra-miniature, 4-pin SMD quartz crystal operating at a nominal frequency of 40MHz. Features a frequency tolerance and stability of 15ppm, with a load capacitance of 10pF. Equivalent series resistance is 60 Ohms. Designed for surface mounting with dimensions of 0.079 x 0.063 x 0.023 inches. Operates within a temperature range of -20°C to 70°C and is RoHS compliant. Packaged in tape and reel for automated assembly.
Frequency40MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM11-40.000MHZ-B7G-T technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 40MHz |
| Frequency Stability | 15ppm |
| Frequency Tolerance | 15ppm |
| Height | 0.023inch |
| Length | 0.079inch |
| Load Capacitance | 10pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ABM11 |
| Series Resistance | 60R |
| Termination | SMD/SMT |
| Tolerance | 15ppm |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Abracon ABM11-40.000MHZ-B7G-T Datasheet
Download the complete datasheet for Abracon ABM11-40.000MHZ-B7G-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

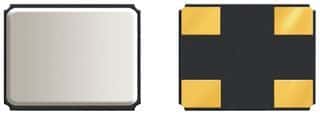

Product Images
