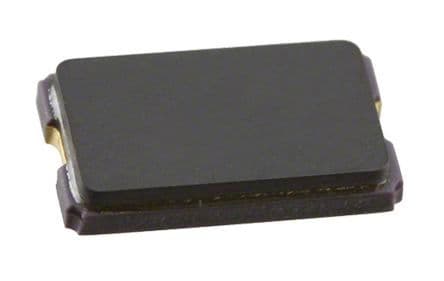

8 MHz crystal oscillator, SMD ceramic surface mount device with 2 pins. Features ±30 ppm frequency tolerance and ±30 ppm frequency stability, operating with 18 pF load capacitance in fundamental mode. This component offers a 100 Ohm series resistance and a wide operating temperature range from -40 °C to 85 °C. The compact ceramic package measures 8 x 4.5 x 1.4 mm.
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM2-8.000MHz-D4Y-T technical specifications.
General
| Package Family Name | SMD |
| Package/Case | CSMD |
| Package Description | Ceramic Surface Mount Device |
| Pin Count | 2 |
| PCB | 2 |
| Package Length (mm) | 8 |
| Package Width (mm) | 4.5 |
| Package Height (mm) | 1.4 |
| Seated Plane Height (mm) | 1.4 |
| Package Material | Ceramic |
| Mounting | Surface Mount |
| Type | Crystal |
| Standard Frequency | 8MHz |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±30ppm |
| Load Capacitance | 18pF |
| Mode of Oscillation | Fundamental |
| Series Resistance | 100Ohm |
| Min Operating Temperature | -40°C |
| Max Operating Temperature | 85°C |
Compliance
| Cage Code | 3KDW2 |
| EU RoHS | Yes with Exemption |
| HTS Code | 8541600050 |
| Schedule B | 8541600025 |
| ECCN | EAR99 |
| Automotive | No |
| AEC Qualified | No |
| PPAP | No |
| RoHS Versions | 2011/65/EU, 2015/863 |
