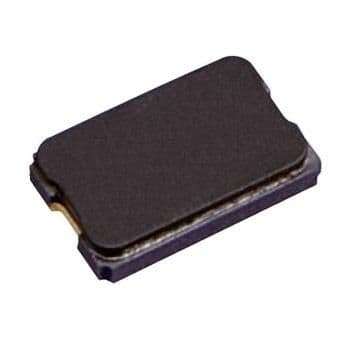

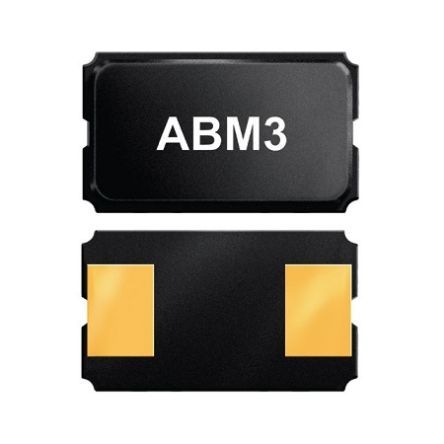

ABM3-30.000MHZ-D2Y-T

30MHz SMD Crystal, 20ppm Tol, 25R ESR, 18pF CL

30MHz fundamental quartz crystal, SMD/SMT package, featuring 20ppm frequency tolerance and 30ppm frequency stability. This miniature ceramic crystal offers a load capacitance of 18pF and an ESR of 25 Ohms. Operating across a temperature range of -40°C to 85°C, it is RoHS compliant and hermetically sealed. Dimensions are 0.197" L x 0.126" W x 0.051" H, supplied on tape and reel.

Frequency30MHz

PackageSMD/SMT

MountingSurface Mount

Quick Jump:

Technical Specifications

Abracon ABM3-30.000MHZ-D2Y-T technical specifications.

General

Package/Case	SMD/SMT
ESR (Equivalent Series Resistance)	25R
Frequency	30MHz
Frequency Stability	30ppm
Frequency Tolerance	20ppm
Height	0.051inch
Lead Free	Lead Free
Length	0.197inch
Load Capacitance	18pF
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Operating Frequency	30 MHz
Package Quantity	1000
Packaging	Tape and Reel
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	ABM3
Series Resistance	25R
Termination	SMD/SMT
Tolerance	20ppm
Width	0.126inch
