Abracon

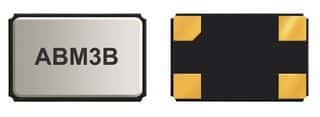

ABM3B-13.000MHZ-10-1-U-T
Parallel - Fundamental Quartz Crystal, 13MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Frequency13MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
Abracon ABM3B-13.000MHZ-10-1-U-T technical specifications.
General
Package/Case
CSMD
Depth
3.2mm
ESR (Equivalent Series Resistance)
70R
Frequency
13MHz
Frequency Stability
10ppm
Frequency Tolerance
10ppm
Height
0.043inch
Lead Free
Lead Free
Length
5mm
Load Capacitance
10pF
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Mount
Surface Mount
Operating Frequency
13 MHz
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
ABM3B
Termination
SMD/SMT
Tolerance
10ppm
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Abracon ABM3B-13.000MHZ-10-1-U-T Datasheet
Download the complete datasheet for Abracon ABM3B-13.000MHZ-10-1-U-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
